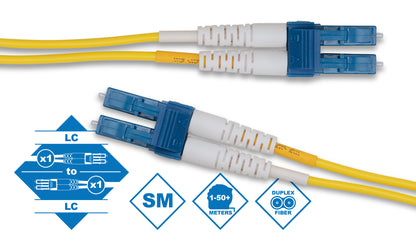

LC Duplex (UPC) to LC Duplex (UPC) OS2 9/125µm Single-mode Cable
1M-2FSM-LCLC
LC Duplex (UPC) to LC Duplex (UPC) OS2 9/125µm Single-mode Cable
1m
$23.85 USD
Product Details
LC UPC Duplex Singlemode OS2, Riser (OFNR), fiber cable, Yellow
- Industry-leading Corning SMF-28® Ultra Glass.
- Low signal attenuation and High Bandwidth for longer distances.
- It exceeds the ITU-T G.657.A1 standard for macrobend loss.
- Exceed ISO/EC and TIA/EIA standards for fiber optic patch cords.
- Quickturn Custom Lengths and Labeling available.
- Large Inventory ensures immediate availability.
Cable Color
Yellow
Fiber Count
Duplex
Fiber Type
OS2 9/125µm Singlemode Fiber
Side A/B Connector
LC Duplex
Cable Polarity
Type B
Side A/B Polish
UPC
Wavelength
1310nm / 1550nm
Glass Manufacturer
Corning SMF-28® Ultra
Flame Rating
Riser (OFNR)
Insertion Loss
≤ 0.15dB
Max Attenuation
1310nm: ≤ 0.35dB/km / 1550nm: ≤ 0.25dB/km
Fiber Grade
Bend Insensitive
Operating Temperature
-20°C to 70°C
Compliance
ANSI, TIA/EIA, IEC, ITU, RoHS
- 3-Year Warranty on all OS2 fiber optic cables.
- 30-Day Returns.
- 30-Day Exchange.
