16 Fiber MTP to 2 x MTP-8 OM4 50/125µm Multimode Breakout Cable
Pairs well with
16 Fiber MTP to 2 x MTP-8 OM4 50/125µm Multimode Breakout Cable
UPC - Ethernet / 1m
$1.00 USD
Product Details

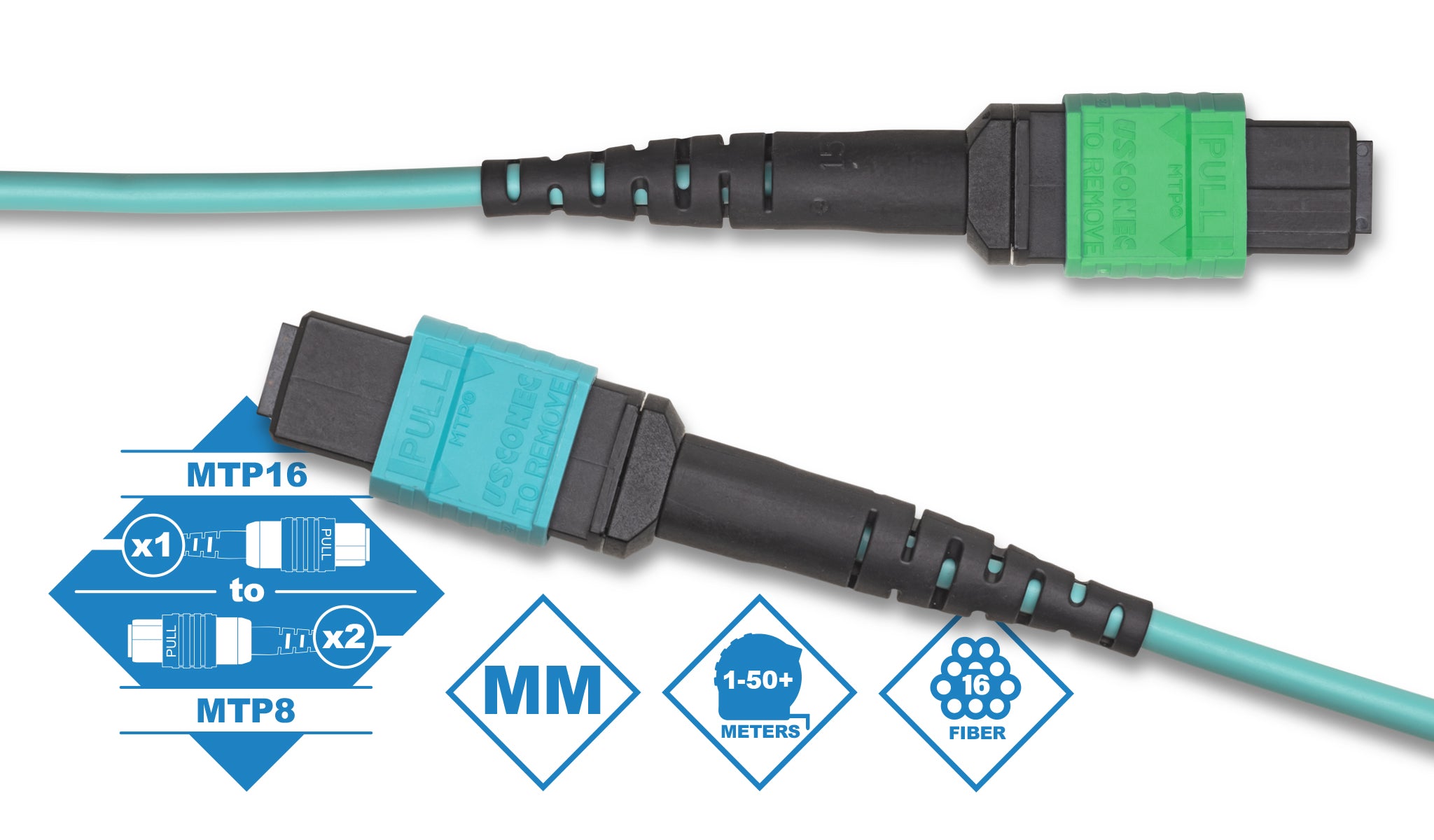

16 Fiber MTP®-16 Elite to 2 x MTP®-8 Multimode OM4, Riser (OFNR), Breakout cable, Aqua
- Featuring MTP® Elite connectors for efficiency.
- Industry-leading Corning ClearCurve®.
- Minimal signal attenuation and optimized for data rates.
- Compliant to IEC 60793-2-10 for A1a class 50/125 multimode fibers.
- Compliant to TIA/EIA 492AAAD (OM4).
- Exceeds ITU-T Recommendation G.651 and ISO/IEC 11801 Grade OM4.
- Breakouts labeled for quick and easy identification.
- Quickturn Custom Lengths and Labeling available.
- Large Inventory ensures immediate availability.
Cable Color
Aqua
Fiber Count
16
Fiber Type
OM4 50/125µm Multimode Fiber
Side A Connector
MTP-16
Side B Connector
2 x MTP-8
Connector Gender
Female - Female
Cable Polarity
Type B
Wavelength
850nm / 1300nm
Glass Manufacturer
Corning SMF-28® Ultra
Flame Rating
Riser (OFNR)
Insertion Loss
≤ 0.35dB
Max Attenuation
850nm: ≤ 2.3dB/km / 1300nm: ≤ 0.6dB/km
Fiber Grade
Bend Insensitive
Operating Temperature
-10°C to 60°C
Compliance
ANSI, TIA/EIA, IEC, ITU, RoHS
- 3-Year Warranty on all OM4 optical cables.
- 30-Day Returns.
- 30-Day Exchange.
